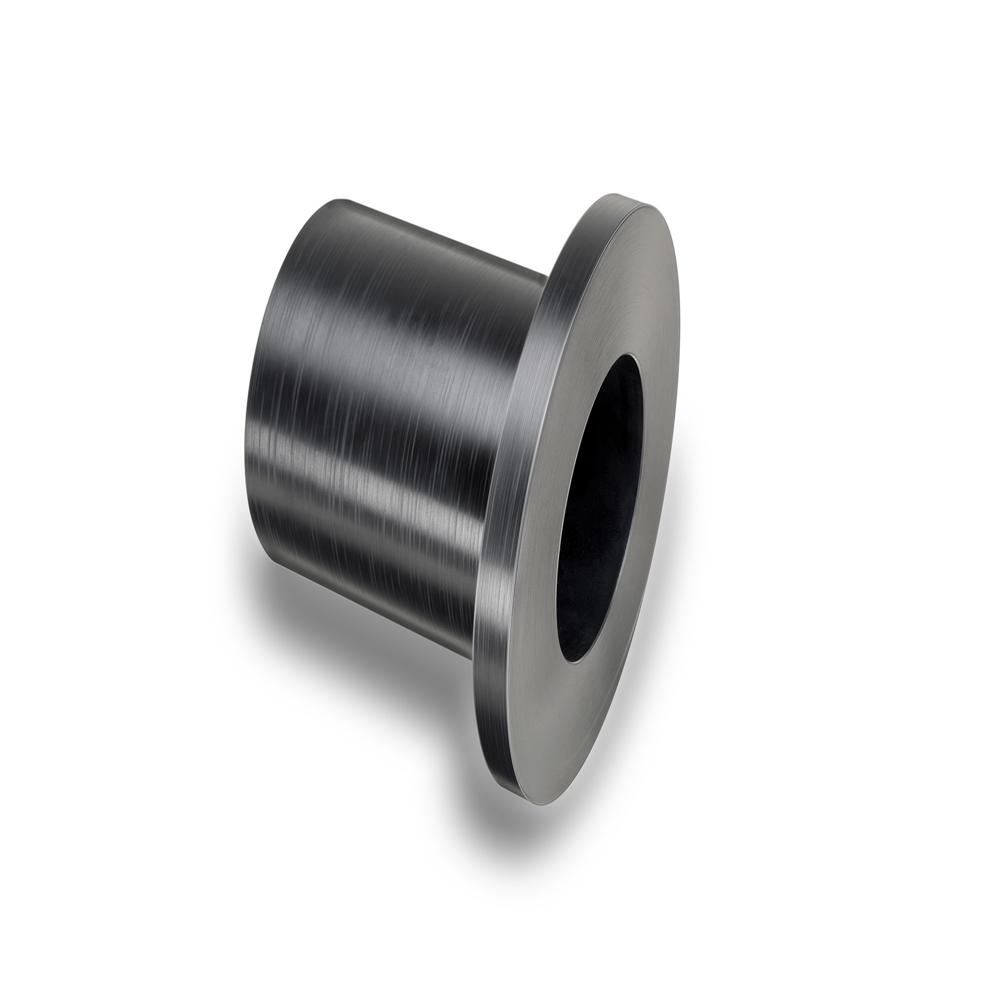

HDPE Long Neck Pipe End & Stub End

HDPE Long Neck Pipe End & Stub End Trade Information

Minimum Order Quantity
100 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About HDPE Long Neck Pipe End & Stub End

The HDPE stub end is part of a two-component system for flange connections:

The HDPE Stub End: The body of the stub end is welded (usually by butt fusion) directly to the end of the HDPE pipe run. The flared face of the stub end is what will press against the face of the mating flange.

The Backing Ring (or Backing Flange): This is a separate, loose-fitting metal ring (usually steel) that slides over the HDPE pipe and rests against the back (non-flared side) of the stub end. This metal ring is what the flange bolts pass through, providing the structural strength to compress the HDPE stub end face against the mating flange face, creating a leak-proof seal.

Superior Features and Application Surface

The overall purpose is to provide a reliable, demountable, and chemical-resistant flanged connection point on an HDPE pipe run.

Flange Adaptation: Its main function is to allow a non-flanged HDPE pipe (which is typically joined by fusion welding) to connect to any component that uses a standard metal flange, such as valves, pumps, metal pipes, or equipment nozzles.

Mechanical Joint Creation: It facilitates the creation of a mechanical, bolt-up joint (using a separate metal backing ring) that can be easily dismantled for inspection, maintenance, or replacement of equipment, without having to cut and re-weld the main pipeline.

Corrosion Resistance: It ensures that the sealing surfacethe face of the stub endthat is in contact with the conveyed fluid remains HDPE, preserving the excellent corrosion and chemical resistance of the plastic pipeline material.

Efficient Dispatch and Market Reach

With secure shipping from our designated FOB port, your order is promptly dispatched to minimize expenditure and maximize convenience. Serving the main domestic market across India, we uphold the highest certification standards for each rubber gasket. Our flexible distribution network guarantees that every client receives the product intact and on time. Certification compliance provides peace of mind, ensuring you receive only the most reliable and perfectly engineered gaskets available on the market today.

FAQs of HDPE STUB END FEATURE AND PURPOSE:

Q: How is the

HDPE STUB END FEATURE AND PURPOSE

?

A: The HDPE Stub End (also known as a Flange Adapter) is a crucial fitting that acts as a transition piece, allowing an all-plastic HDPE pipe to be connected to traditional flanged components like valves, pumps, or metal pipes.

Its features and purpose are entirely centered on this flanged connection.

Key Features

The physical characteristics of the stub end are specifically designed for its role as a plastic sealing face and a fusion point

Material: Made from high-quality HDPE (e.g., PE100), ensuring the fitting maintains the pipeline's overall corrosion resistance, chemical inertness, and flexibility.

Butt Fusion End (Spigot): One end is a uniform pipe dimension (the "stub") designed for a permanent, high-strength connection via butt fusion or electrofusion welding to the main HDPE pipe.

Flange Face (Collar): The other end is flared out into a flat, wide collar. This plastic face is the actual sealing surface that presses against the mating flange, often with a gasket.

Designed for Backing Rings: It is explicitly designed to be used with a separate, loose metal backing ring (typically steel). This ring slides over the pipe and sits against the back of the HDPE collar.

Q: What are the main benefits of choosing this HDPE STUB END FEATURE AND PURPOSE?

A: 1. Superior Functionality & Installation

Easy Alignment (Swivel Flange): The HDPE stub end is always used with a loose metal backing ring. This ring can rotate freely on the pipe, meaning the stub end's bolt holes don't need to be perfectly aligned with the pipe during the fusion process. This significantly simplifies installation, especially with large diameter pipes or in tight spaces, where aligning fixed bolt patterns would be difficult.

Easy Disassembly/Maintenance: The flanged connection allows the joint to be easily unbolted and rebolted. This is critical for connecting components like pumps, valves, or strainers that require periodic inspection, maintenance, or replacement. Fused HDPE joints, by contrast, are permanent.

Strong, Leak-Proof Joint: The connection to the pipe is made using butt fusion or electrofusion, which creates a homogenous, molecular bond that is as strong, or stronger, than the pipe itself. The resulting joint is permanently leak-free.

2. Corrosion Control & Durability

Corrosion Resistance: The most significant material benefit. The HDPE stub end collar provides the actual sealing face, ensuring the conveyed fluid only contacts the plastic material. This prevents corrosion and rust, which are common problems with metal flanges, especially in applications like wastewater, chemical processing, or saltwater lines.

Chemical Resistance: HDPE is an inert material and highly resistant to a wide range of chemicals, acids, and bases, ensuring the connection maintains its integrity in harsh industrial environments.

Longevity: Due to its resistance to rust, corrosion, and biological growth, the entire HDPE system, including the stub end, has a long service life, often exceeding 50 years.

3. Cost and Material Efficiency

Cost Savings on the Flange: Since the HDPE stub end provides the seal face and corrosion protection, the accompanying metal backing ring does not need to be made of expensive, high-grade, corrosion-resistant materials (like stainless steel). Standard, cheaper materials like carbon steel can be used for the structural support, leading to significant cost savings.

Reduced Weight: The system is generally lighter than using a full, high-pressure metal flange or an all-plastic flanged fitting of the same diameter, which lowers transportation and handling costs.

Low Maintenance: The durable, non-corroding nature of the HDPE stub end reduces the need for frequent checks and replacements associated with rust and degradation.

Q: Where are these hdpe stub end manufactured and supplied from?

A: We are a renowned manufacturer, service provider, and supplier based in India, catering to domestic markets with dependable distribution partners and secure shipping methods.

Q: When will my order be dispatched after instant checkout?

A: Once you complete the instant checkout process, your order is swiftly processed and generally dispatched within the shortest possible time frame, ensuring prompt delivery and minimal waiting time.

Q: What certifications guarantee the quality of these hdpe stub end?

A: Our hdpe stub end meet stringent certification standards, ensuring reliability, consistency, and performance suitable for varied irrigation and MS fitting applications in India.

Q: How does the competitive edge of this hdpe stub end impact overall expenditure?

A: The hdpe stub end robust sealing and long service life reduce the frequency of replacement, keeping ongoing expenditure low while offering superb reliability and performance for your sprinkler systems.
